In-Sight 2800 Camera Restarts When Triggered via Power IO Cable Due to Low Power Supply

In-Sight 2800 torch model Insight vision suite camera rebooting/restart if trigger comes via Power IO cable. Where as Camera acquired an image if triggered from Vision Suite camera.

2025/10/23

Details

The camera was not getting enough power, as it needs at least 1.6A to work properly. When it receives a trigger signal through the IO cable while running on low power, it restarts on its own. This causes the camera to disconnect from the software.

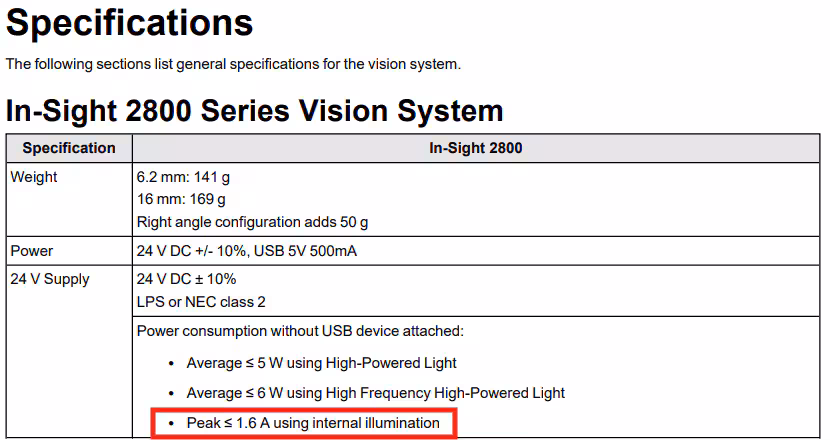

IS2800 Camera Restarts When Triggered via Power IO Cable Due to Low Power Supply_Image-1
