In-Sight Key Generator - In-Sight Explorer

As a registered user of Cognex vision systems, you are entitled to install and run In-Sight Explorer software on one or more PCs with no time limit, as long as at least one In-Sight system is located on the same network as the PC(s).

In order to run In-Sight Explorer without an In-Sight system on the network, you will need to enter a key to unlock the emulator software.

2024. 09. 25.

Details

The following instructions will help you with this process:

Step 1: Start In-Sight Explorer.

Step 2: Under the System menu, select Options. The Options dialog box will appear with emulation selected by default.

NOTE: DO NOT CLOSE THE OPTIONS DIALOG BOX UNTIL INSTRUCTED. If you accidentally close it, you will need to start over from step 2.

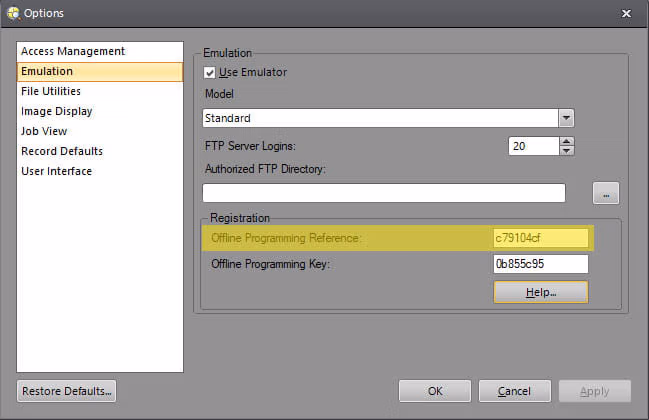

Step 3: In the Registration Section of the dialog box, locate the 8-character Offline Programming Reference string.

InsightEmulatorKey 1

Step 4: On this page, copy the Offline Programming Reference string into the text box labeled "Offline Programming Reference." Then, press the "Generate Key" button to generate the unlocking Offline Programming Key.

Step 5: In the In-Sight Explorer dialog box, enter the generated Offline Programming Key in the box labeled "Offline Programming Key". Apply the change, then close the Options dialog box.

In-Sight Key Generator

Cognex 비전 시스템의 등록된 사용자로서, 최소 하나의 In-Sight 시스템이 PC와 동일한 네트워크에 있는 한, 시간 제한 없이 하나 이상의 PC에 In-Sight Explorer 및/또는 In-Sight Vision Suite 소프트웨어를 설치하고 실행할 수 있습니다.
