Script - Using Different Handlers

Purpose:
This script serves as a foundational template for creating a presentation reading application. It demonstrates how to use multiple timers on the DataMan 280 reader series. Data from the reader is outputted via USB HID mode.

Requirements

Hardware:
This script is designed for use with fixed-mount readers, specifically tested on the DataMan 280 series.

Hardware List:

• DataMan reader

How to use it?

Setting up HID Mode on DataMan 280 Series Reader:

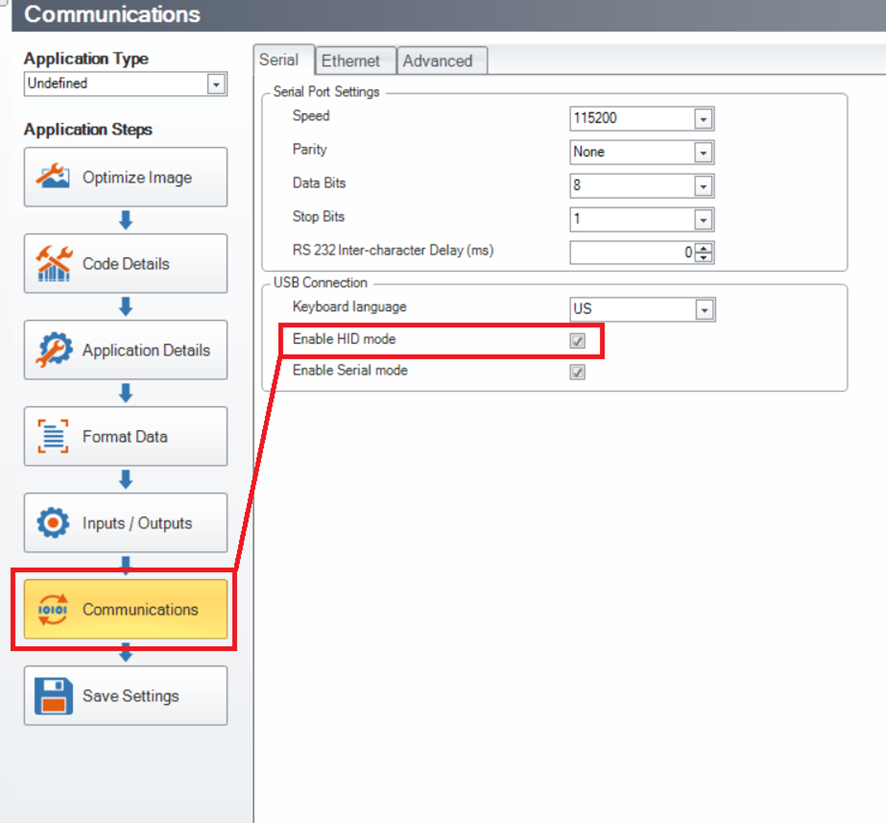

To enable HID mode, navigate to the Communication settings, as shown in Picture 1.

Uploading Scripts to Reader:

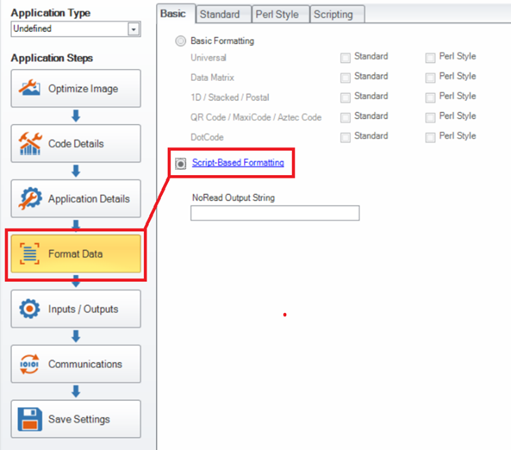

Ensure that scripting is enabled in the “Format Data” tab.

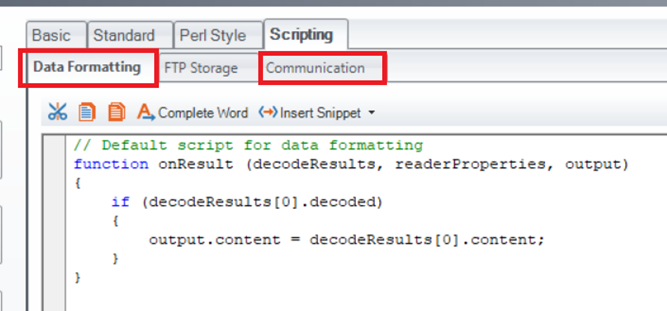

Both the Data Formatting and Communication scripts should be uploaded to their respective tabs.

Sample Script

Data Formatting Script:

"use strict";

// Constants declaration
const ENTER = '\x0A\x0D'; // Enter at the end of output string
const TIME_LIGHTS = 2; // Time for how long lights stay off after a successful scan
const TIME_SEND = 1;   // Delay before sending scanned results
const TIME_RESET = 5;  // Time to reset "never read same code twice" feature
const MAX_ITEMS = 5;   // Number of last remembered decodes

// Variables declaration
let outPut = ''; // Output string
let result = ''; // Data to be sent via communication handler

// DMCC initial setup
dmccSet('LIGHT.DIRECT', "ON ON ON ON");  // Turn on lights
dmccSet('LIGHT.HIGH-FREQUENCY', "ON");   // Turn on high-frequency lights
dmccSet('DECODER.REREAD-NEVER2X', 'ON'); // Prevent reading the same code twice
dmccSet('DECODER.REREAD-NOT-LAST-N', MAX_ITEMS);  // Prevent reading the last N codes

function onResult (decodeResults, readerProperties, output) {
 outPut = ''; // Reset the output string to default value

 if (decodeResults[0].decoded) {
   // Reset settings to prevent reading the same code
   dmccSet('DECODER.REREAD-NEVER2X', 'ON');
   dmccSet('DECODER.REREAD-NOT-LAST-N', MAX_ITEMS);

   result = decodeResults[0].content; // Store the decoded result
   dmccCommand("BEEP", 1, 2); // Beep after successful decode
   dmccSet("LIGHT.DIRECT", "OFF OFF OFF OFF"); // Turn off lights

   // Start timers for different handlers
   if (serialHandler !== null) {
     serialHandler.setTimer(TIME_LIGHTS);
   }
   if (comusbHandler !== null) {
     comusbHandler.setTimer(TIME_RESET);
   }
   if (keybrdHandler !== null) {
     keybrdHandler.setTimer(TIME_SEND);
   }
 }
 output.content = outPut;
}

Communication Script:

"use strict";

const LOG = true; // Enable logging. Results are found in Device Log

let keybrdHandler = null; // Ethernet handler
let serialHandler = null; // Serial (COM) handler
let comusbHandler = null; // COM USB handler

function CommHandler(localName) {
 return {
   onConnect: function (peerName) {
     console.log('New Connection -> peerName:' + peerName + ', localName:' + localName);

     if (peerName === 'COM1') { // COM connection
       serialHandler = this; // Enable serial handler
       logMsg('Serial Handler Connected!');
       return true;
     }
     else if (peerName === 'keybrd'){ // Keyboard connection
       keybrdHandler = this;
       logMsg('Keyboard Handler Connected!');
       return true;
     }
     else if (peerName === 'COM USB'){ // COM USB connection
       comusbHandler = this;
       logMsg('COM USB Handler Connected!');
       return true;
     }
     return false;
   },

   onDisconnect: function () {
     // Disconnect logic for handlers
     if (this === serialHandler) {
       serialHandler = null;
       logMsg('Serial Handler Disconnected!');
     }
     if (this === keybrdHandler) {
       keybrdHandler = null;
       logMsg('Keyboard Handler Disconnected!');
     }
     if (this === comusbHandler) {
       comusbHandler = null;
       logMsg('COM USB Handler Disconnected!');
     }
   },

   onTimer: function () {
     // Timer logic for different handlers
     if (this === serialHandler) {
       console.log('Serial timer reached - turning on lights');
       dmccSet("LIGHT.DIRECT", "ON ON ON ON");
       dmccSet("LIGHT.HIGH-FREQUENCY", "ON");
     }
     if (this === keybrdHandler) {
       console.log('Keyboard timer reached - sending data');
       keybrdHandler.send(result + ENTER);
     }
     if (this === comusbHandler) {
       console.log('COM USB timer reached - resetting "never read same code twice"');
       dmccSet('DECODER.REREAD-NEVER2X', 'OFF');
       dmccSet('DECODER.REREAD-NOT-LAST-N', 0);
     }
   }
 };
}

function logMsg (msg) {
 if (LOG) {
   console.log(msg);
 }
}
