Details
Issue:
The Job Pass bit is not transferred through industrial protocol to the PLC from an EasyBuilder job.
Causes:
The industrial protocol hasn't been added to the Communication Devices list in the EasyBuilder job.
Resolution:

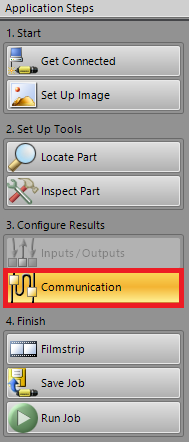

Click on the Communication Application Step:

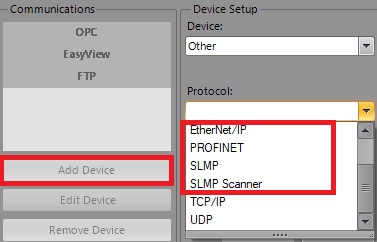

Click on the Add Device button and select the industrial protocol that is used:
The selected protocol should appear in the Communication Devices list:
