What Emulator Options Are Available for In-Sight Vision Suite 2D and 3D Products?

This article provides the three different emulator options for In-Sight Vision Suite - No Dongle, Cloud Dongle, and Physical USB Dongle.

25/05/2025

Details

In-Sight Vision Suite has three emulator options for 2D and 3D In-Sight products:

  1. No Dongle - This is the same process and functionality as In-Sight Explorer Emulator. You get full usability of EasyBuilder and Spreadsheet projects for Traditional Rules Based tools.

    Placeholder
  2. Cloud Dongle - This give you full usability of ViDi EL Tools, but a live internet connection is required.

    Placeholder

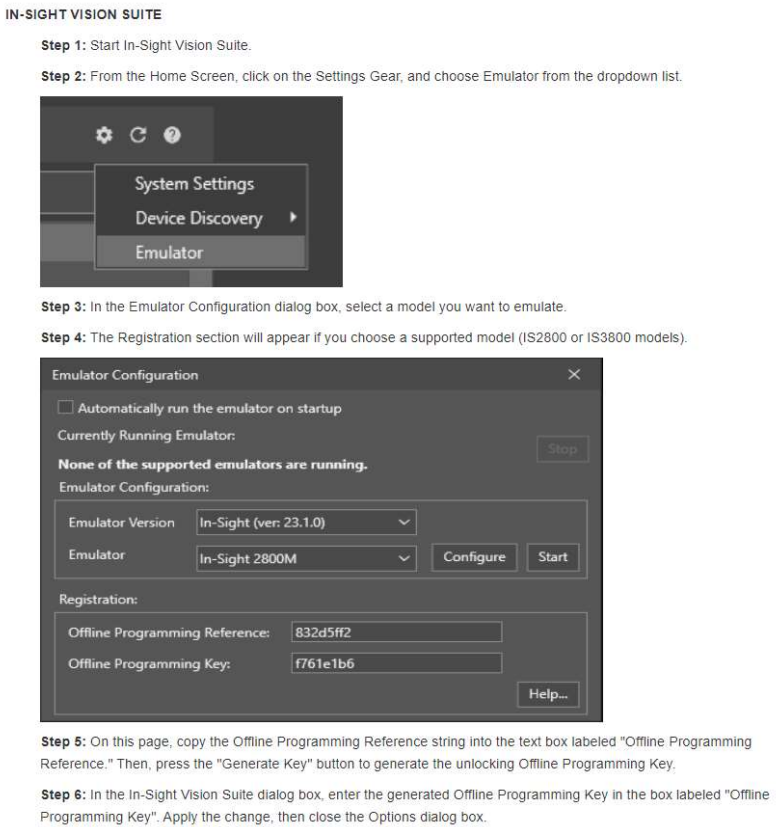

  3. Hardware Dongle - With a physical dongle and the Offline Programming Key from Step 1, you get full usability without an internet connection. This dongle is permanent. It will never time out and will never need a renewal.

    Placeholder
    Placeholder

There is no time limit on this dongle!
