What Orientation do Right Angle Cables Exit on an In-Sight 2800?

What orientation do Right Angle cables exit on an In-Sight 2800?

28.10.2025

Question

What orientation do Right Angle cables exit on an In-Sight 2800?

Answer

When using the Power I/O Cable CCB-PWRIO-XXR on an IS2800, the cable goes out the rear of the IS2800.

What Orientation do Right Angle Cables Exit on an In-Sight 2800_Image-1-II
What Orientation do Right Angle Cables Exit on an In-Sight 2800_Image-2

When using the Ethernet Cable CCB-84901-2002-XX on an IS2800, the cable goes out the rear of the IS2800.

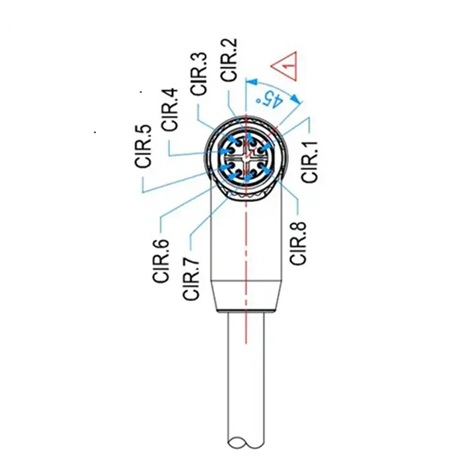

What Orientation do Right Angle Cables Exit on an In-Sight 2800_Image-3_III
What Orientation do Right Angle Cables Exit on an In-Sight 2800_Image-4

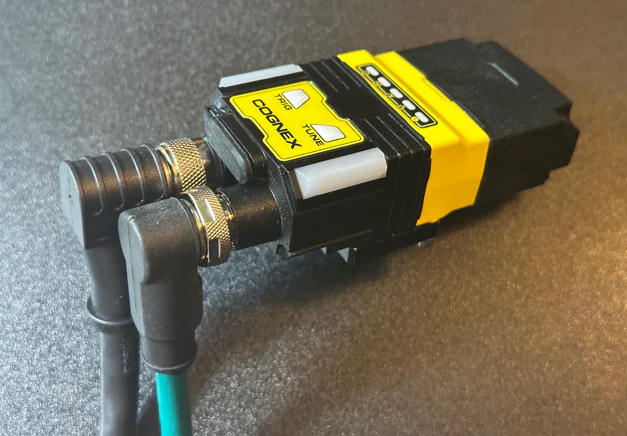

What Orientation do Right Angle Cables Exit on an In-Sight 2800_Image-5
